ZEV T3-611 pickup

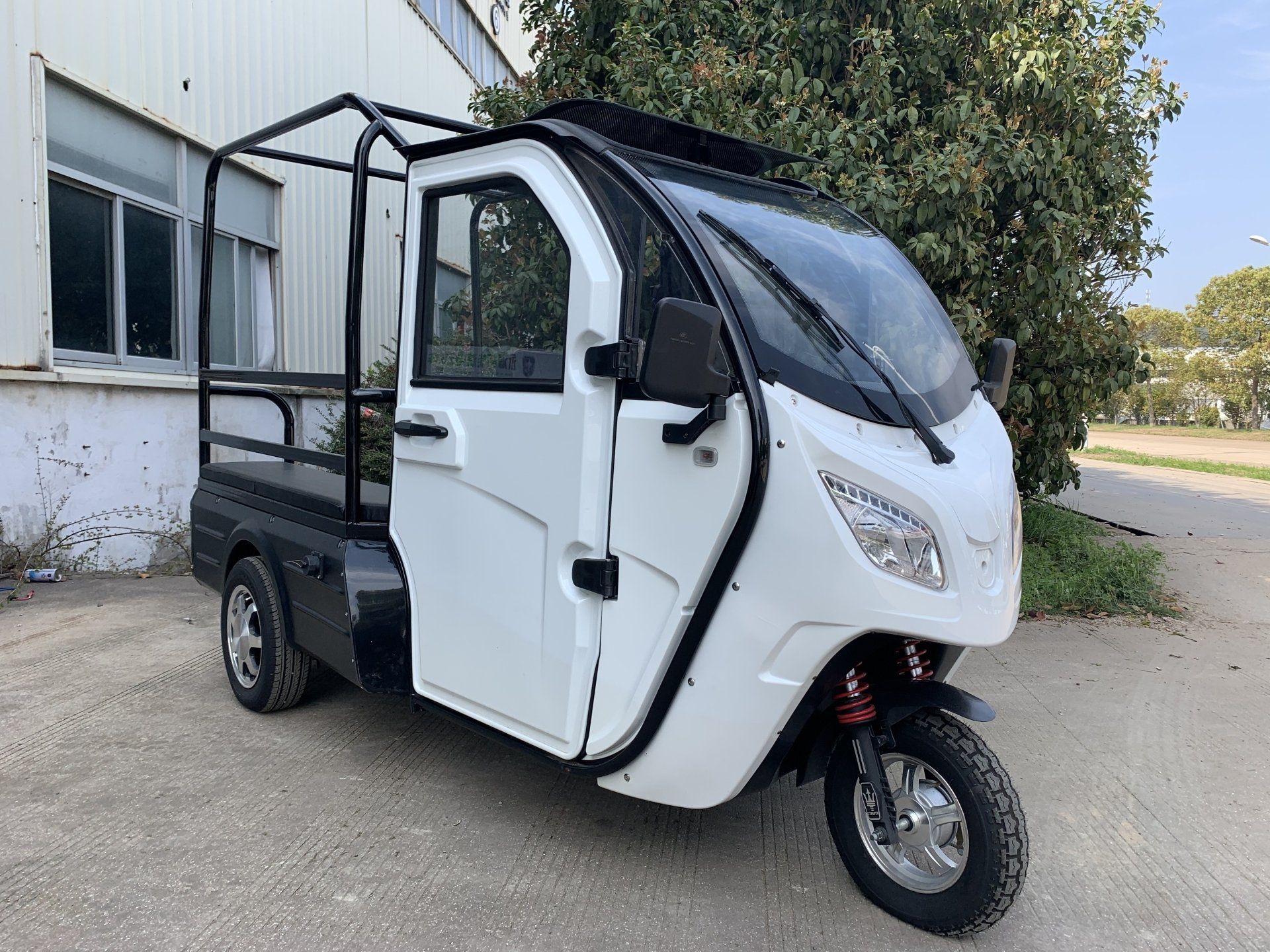

ZEV T3- 611 PICKUP TRUCK

The compact, do it all, inexpensive pickup truck.

The truck can be fitted with a number of different beds from standard pickup bed to freezer box, delivery box, or equipped as a 7 passenger in the rear people hauler.

Designed for the all day drivers comfort, ease of operation


ZEV T3- 611 PICKUP TRUCK

QUICK SPECS


Top Speed ------------------Standard 35 mph.

Range at 30 mph -----------                                         -------70 miles 80 ah silicate battery             -------------100 miles, 100 ah lithium

           -------------200 miles, 200 ah lithium

Continuous Power ----------4000 watts

Battery Type -----------------Caustic Silicate or Lithium

MSRP ------------------------

                  $10,966  80 ah silicate battery

                     $11,890  100 ah Silicate battery

                   $12,490 100 ah Lithium battery

                   $13,390 160 ah Lithium battery


 The ZEV T3- 611 Pickup Features:

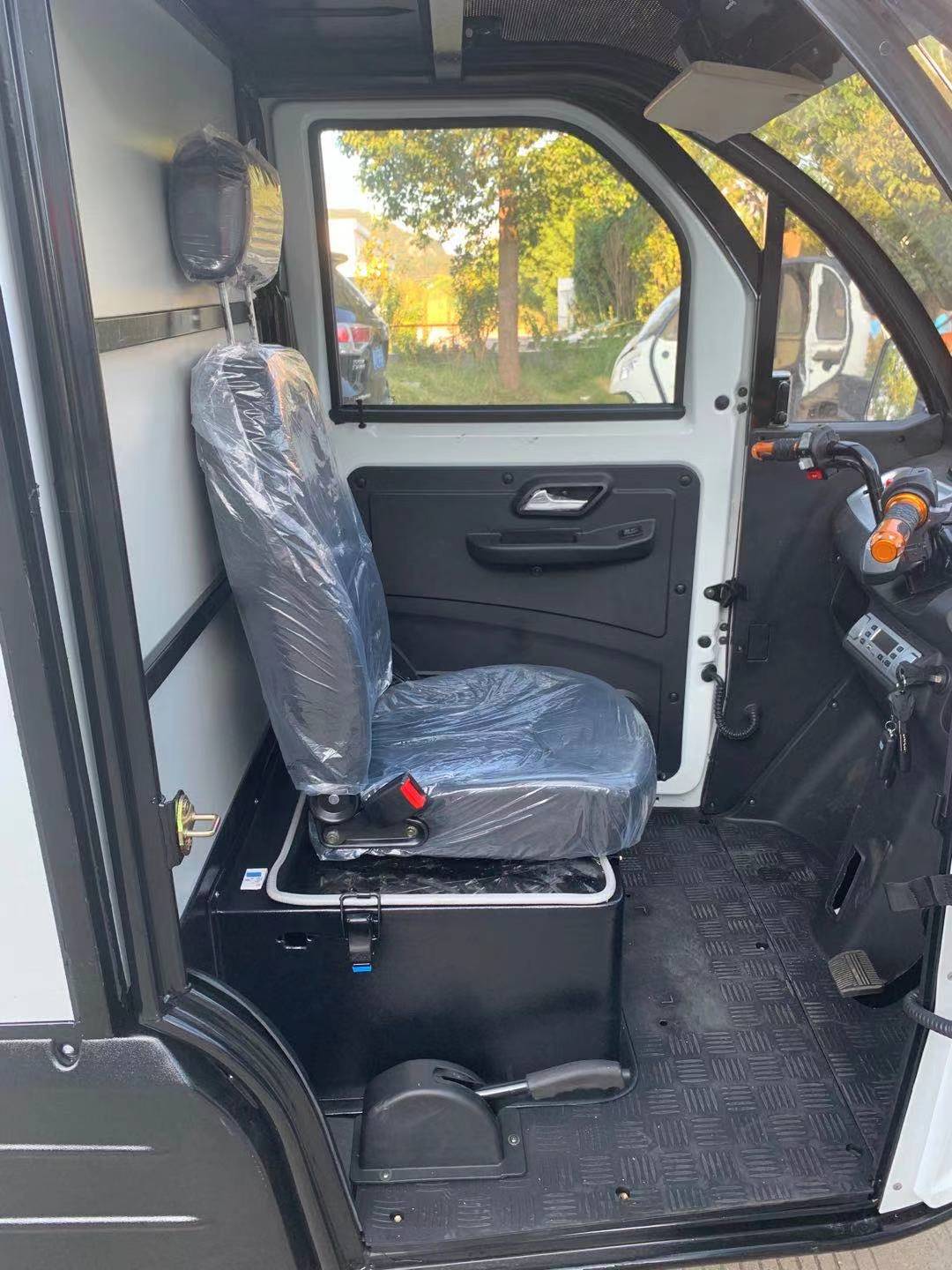

  • Seating for 3 in the cab for people over 6 ft tall, and +200 lbs individuals.
  • Large door opening so the driver making repeated stops can enter and exit freely.
  • Electric power windows.
  • Roof mounted sunroof / air scoop
  • Backup camera standard.
  • Optional trailer hitch. Tow weight highly dependent on terrain, intended for loads not more than 500 lbs.
  • Windshield wiper and washer standard
  • Heater  and defroster standard
  • LED lights all around.
  • Radio standard
  • Tempered safety glass
  • Body size (L×W×H: mm) 3000x1260x1870
  • Wheelbase mm 2100
  • Vehicle Gross Weight 680kg
  • Vehicle Empty Weight 340 kg
  • Payload 340 kg
  • Brake Type - Disc all wheels.

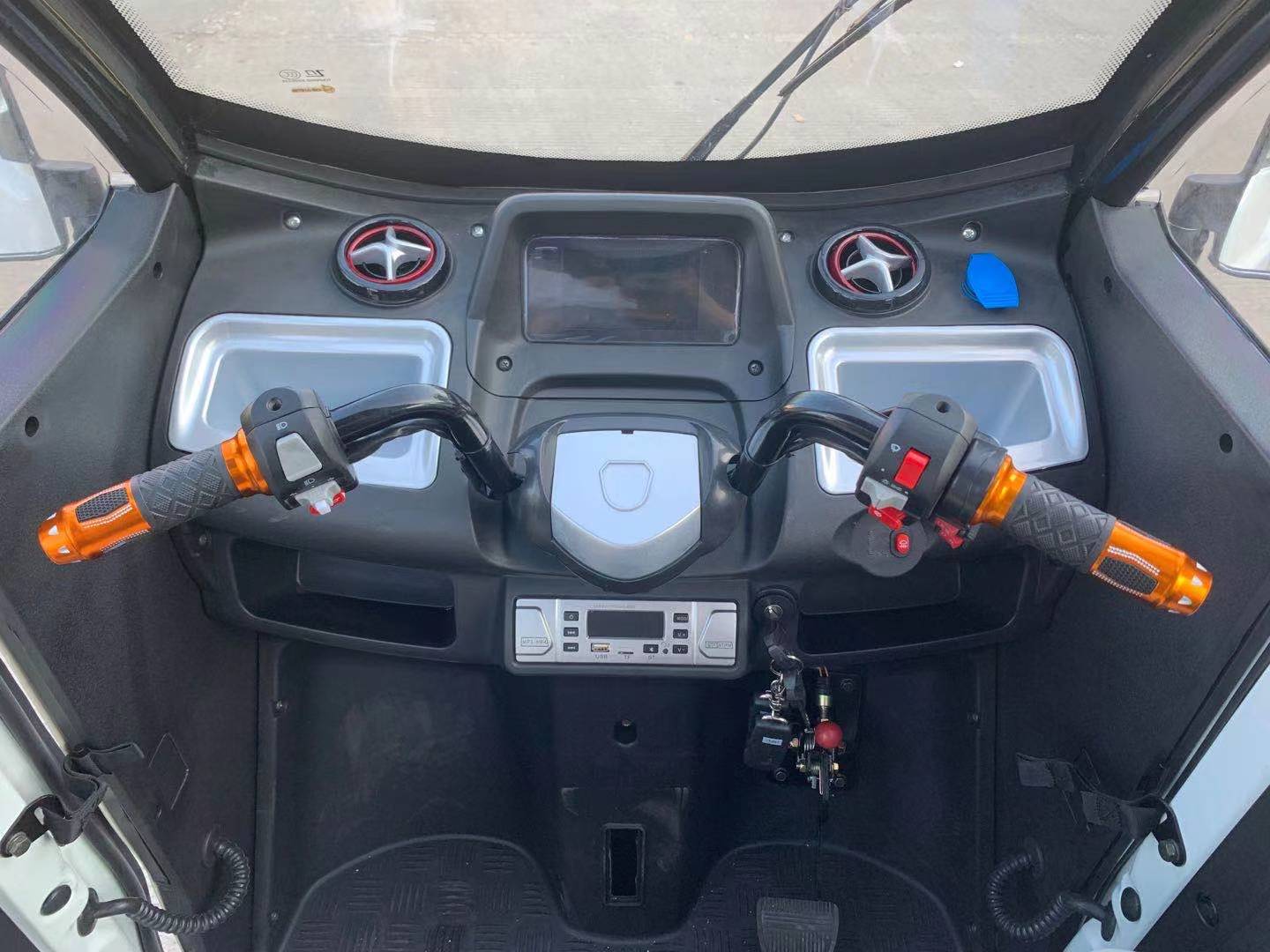

  • Brake Operation.  Available with all hand controls, OR with rear foot brake, front hand control. Only all hand is available for the USA for on road operations.
  • Wheel size Front 130-70-12, Rear 145/65-12
  • Battery Type Maintenance free lead silicate or optional lithium
  • Battery Capacity 72V100A, 6 cells
  • Motor Capacity AC Induction 4000W
  • Max speed 60km/h at full load.
  • Range 80km to 130 km depending on speed and load
  • Shipping. One 40-foot high container holds 4 vehicles

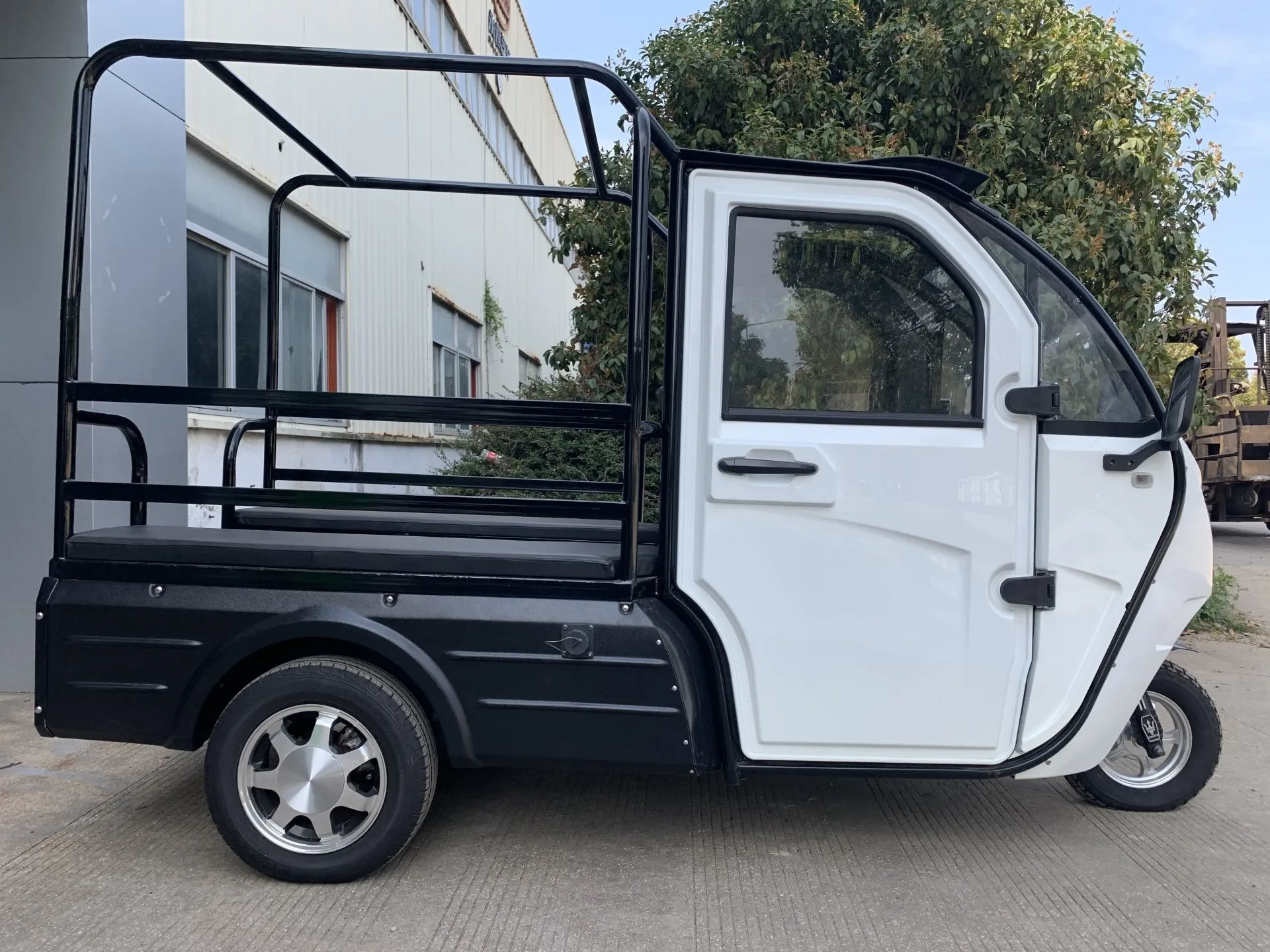

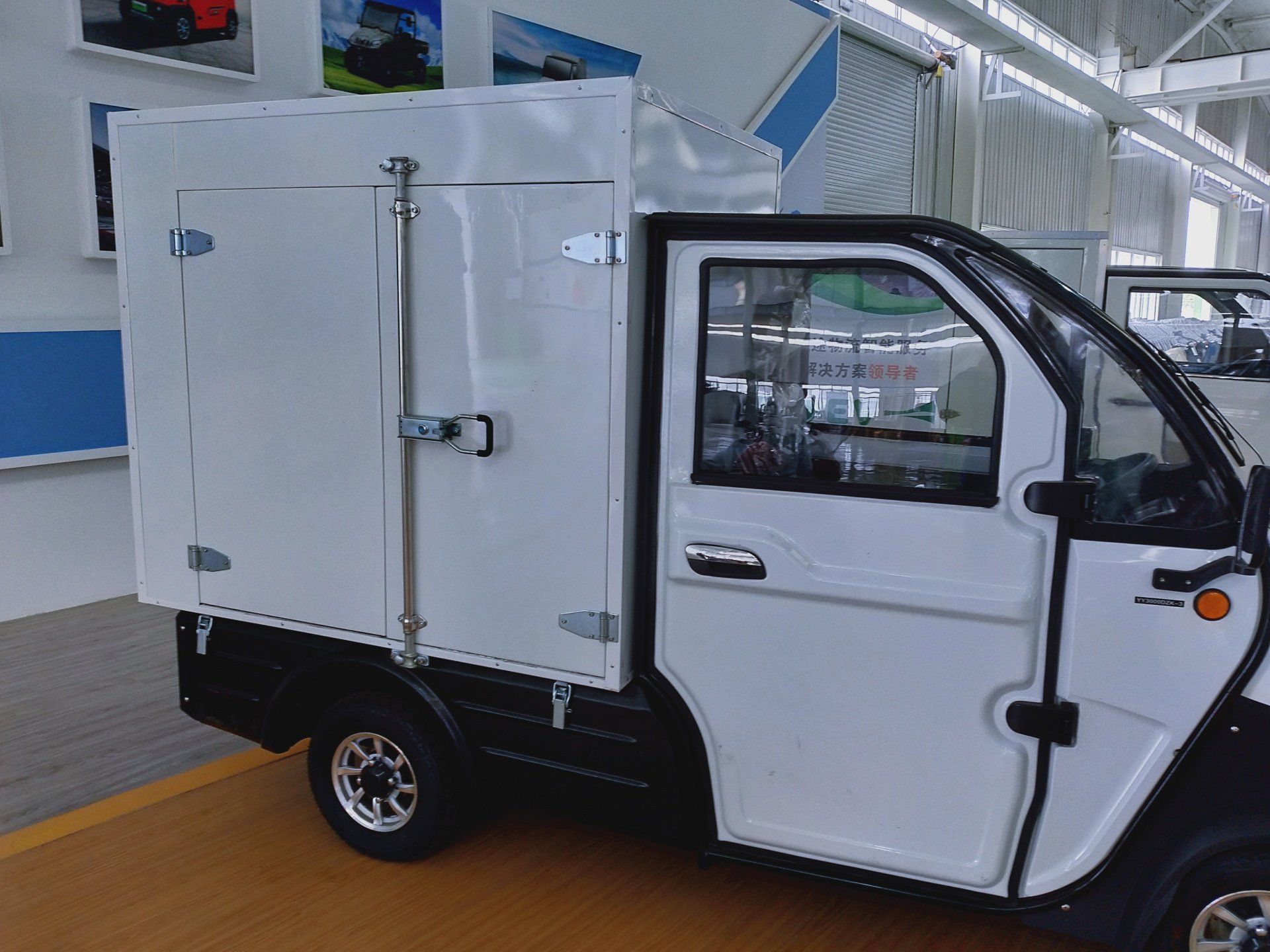

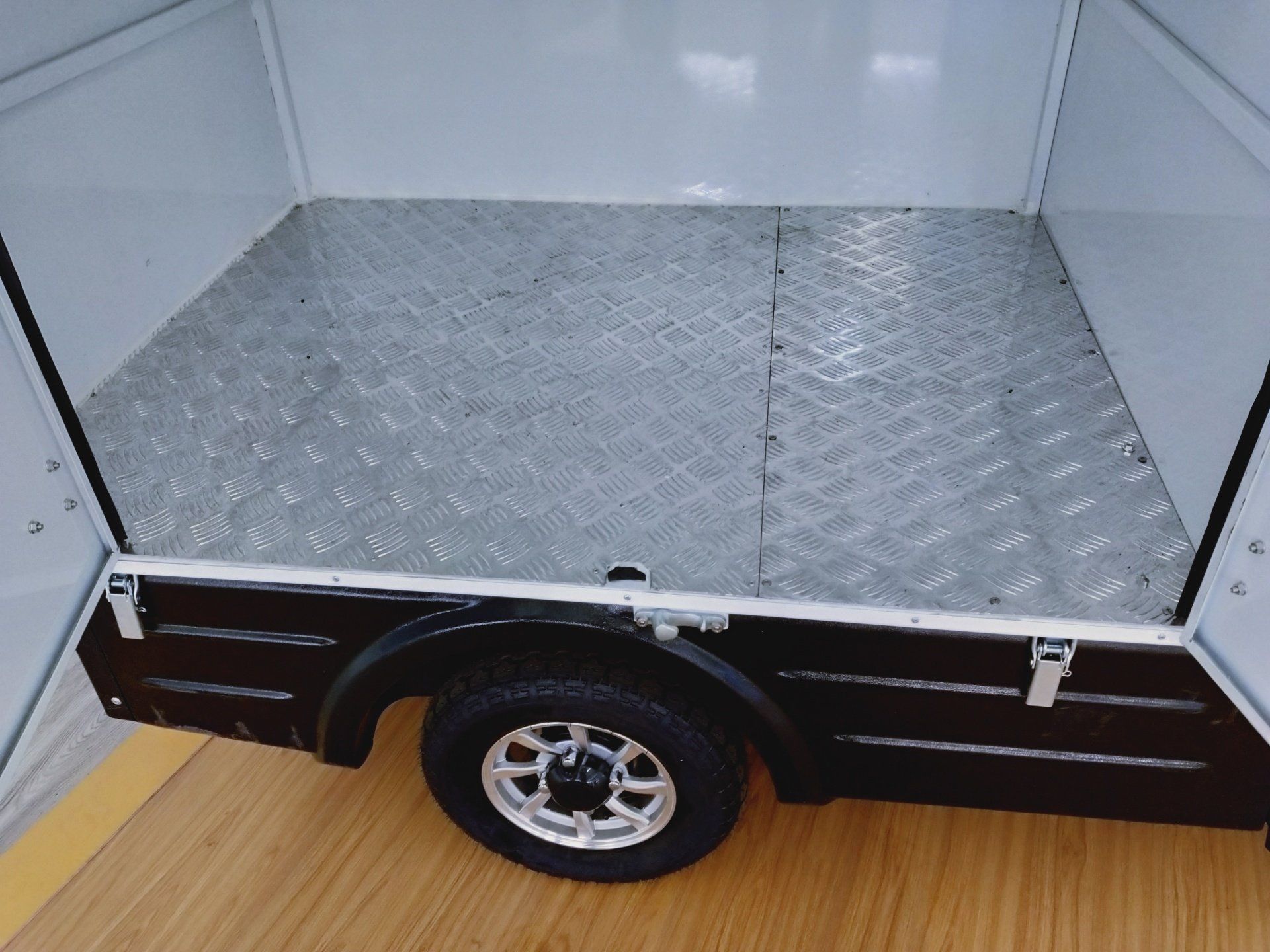

Available rear beds can be: crew or taxi rear bed with seating for 7, flat bed, pickup truck bed, delivery truck bed, box truck, bin or cage box, or refrigerator truck box.  See photos below

Four optional rear of the cab construction variations available.

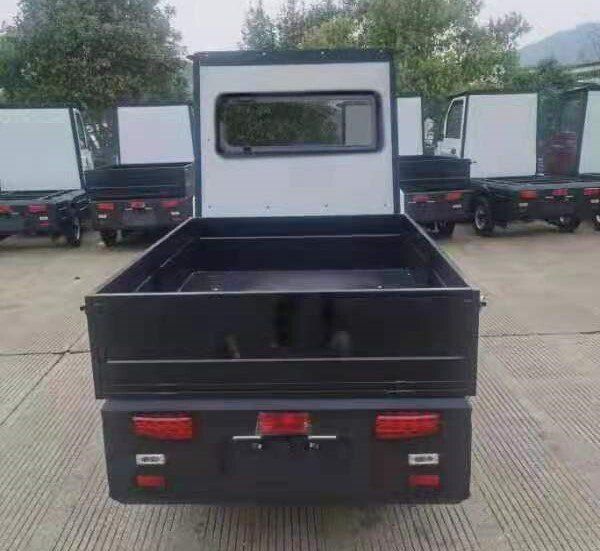

Solid rear wall. No rear wall. Sliding glass window. Fixed rear window.  See photos below

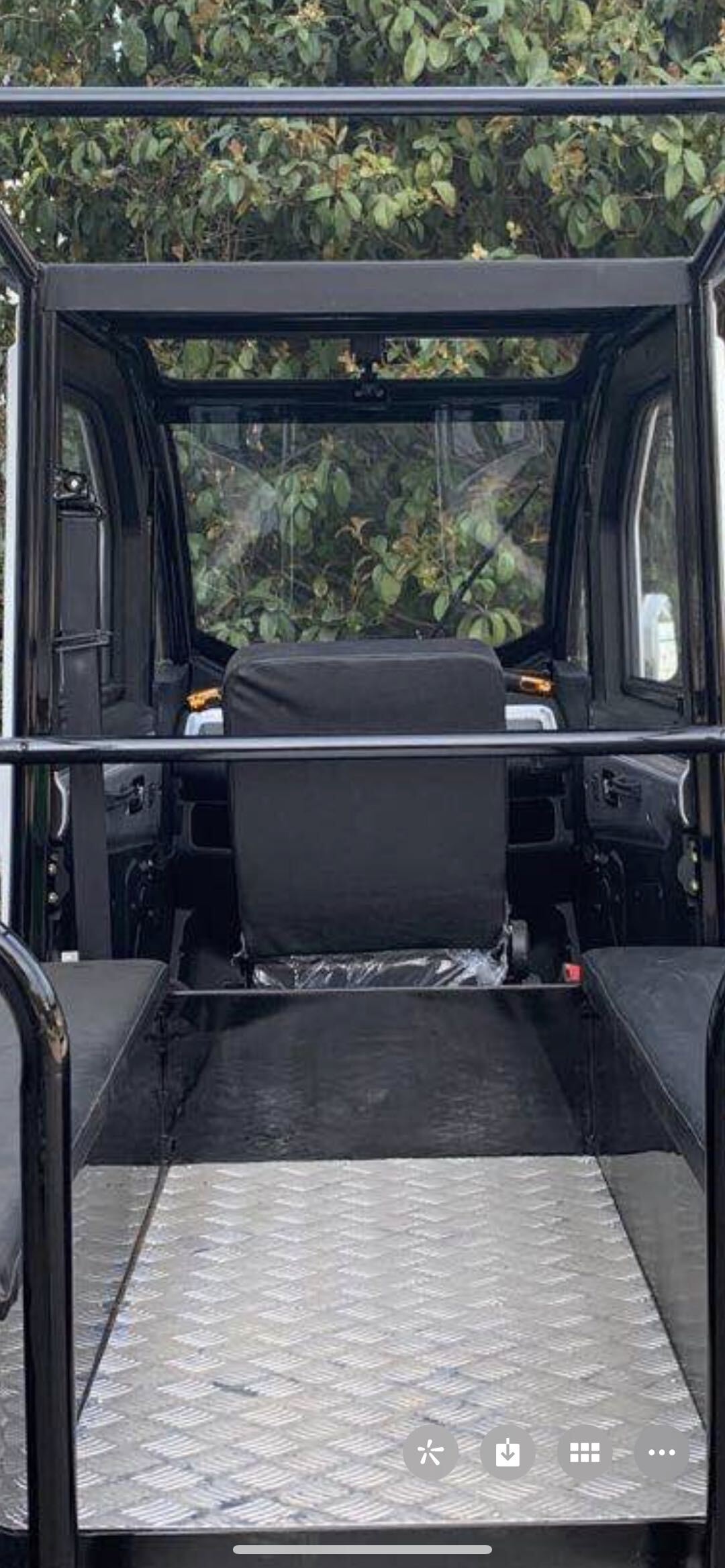

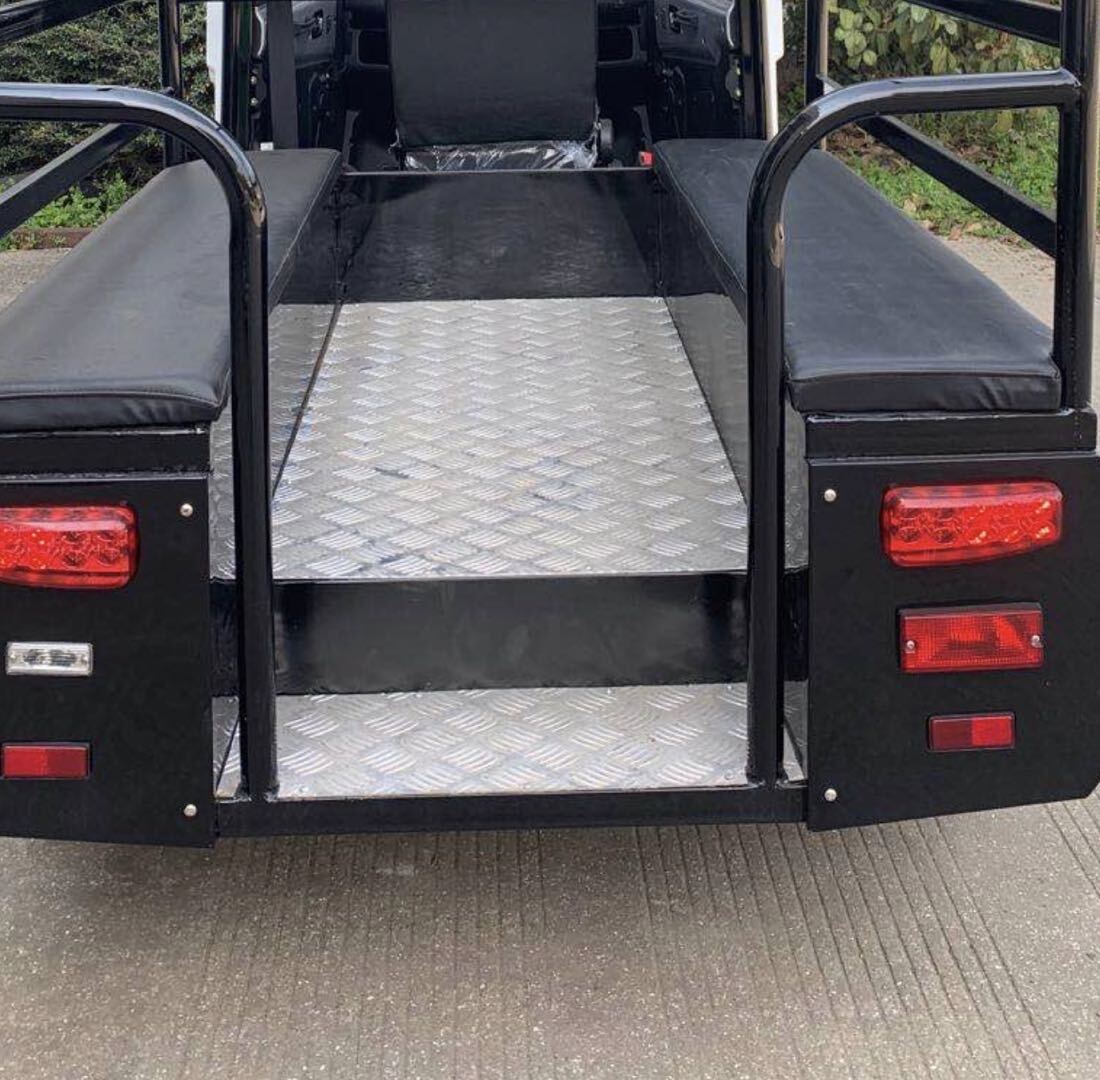

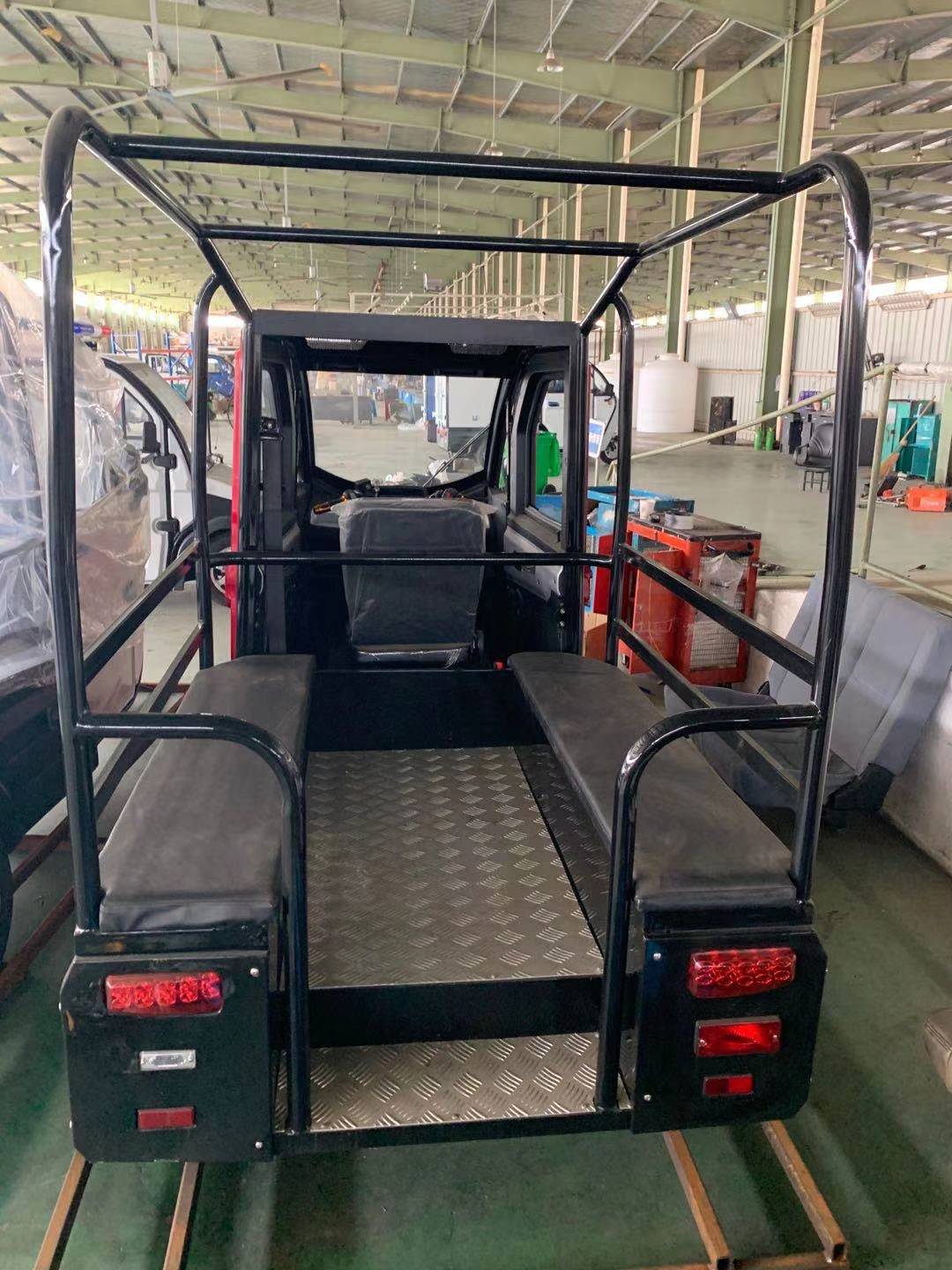

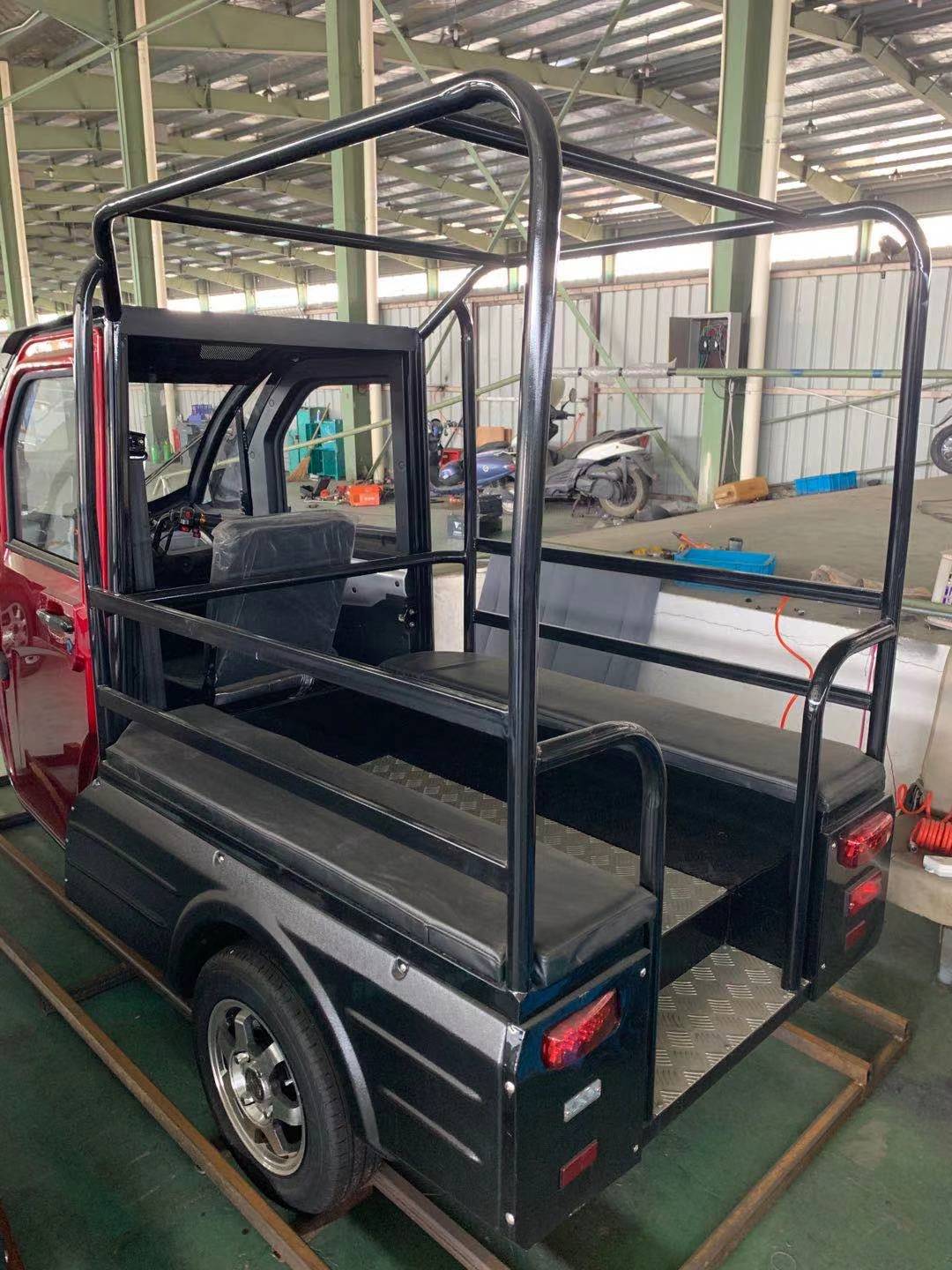

Special optional crew or taxi bed with rear steps up into the bed, bench seating for 7.
