ZEV 601 MINI VAN AND TAXI

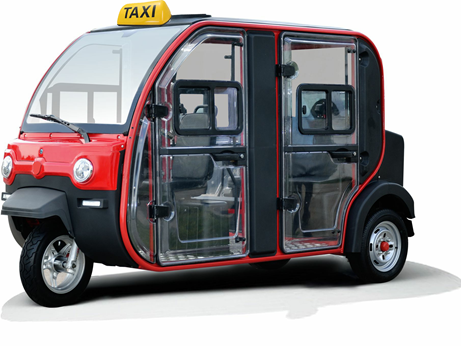

ZEV 601 MINI VAN & SAFETY TAXI

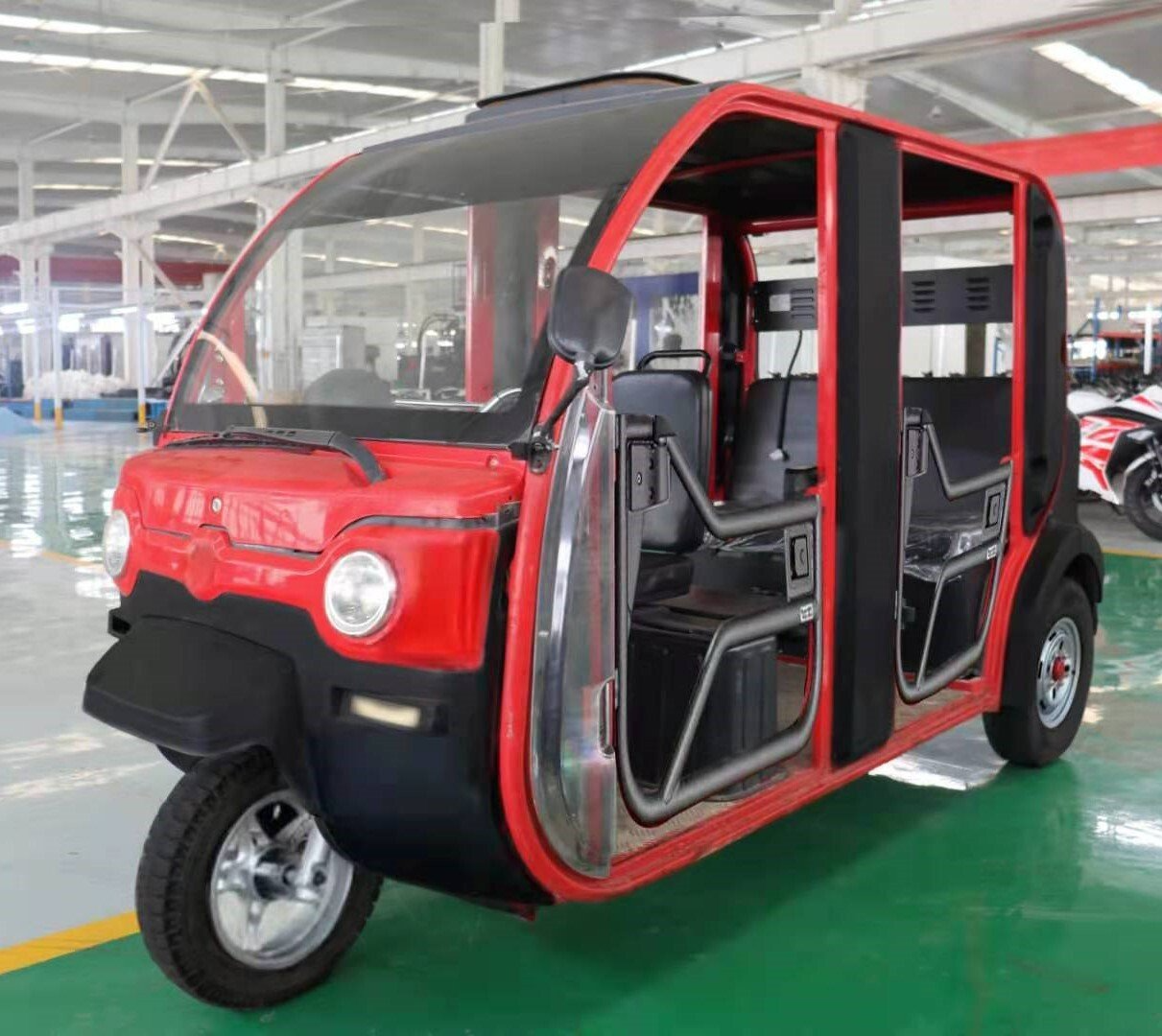

                                  Five passenger + driver trike.                                  Designed to be the safest open style                                        or taxi type trike on the road.

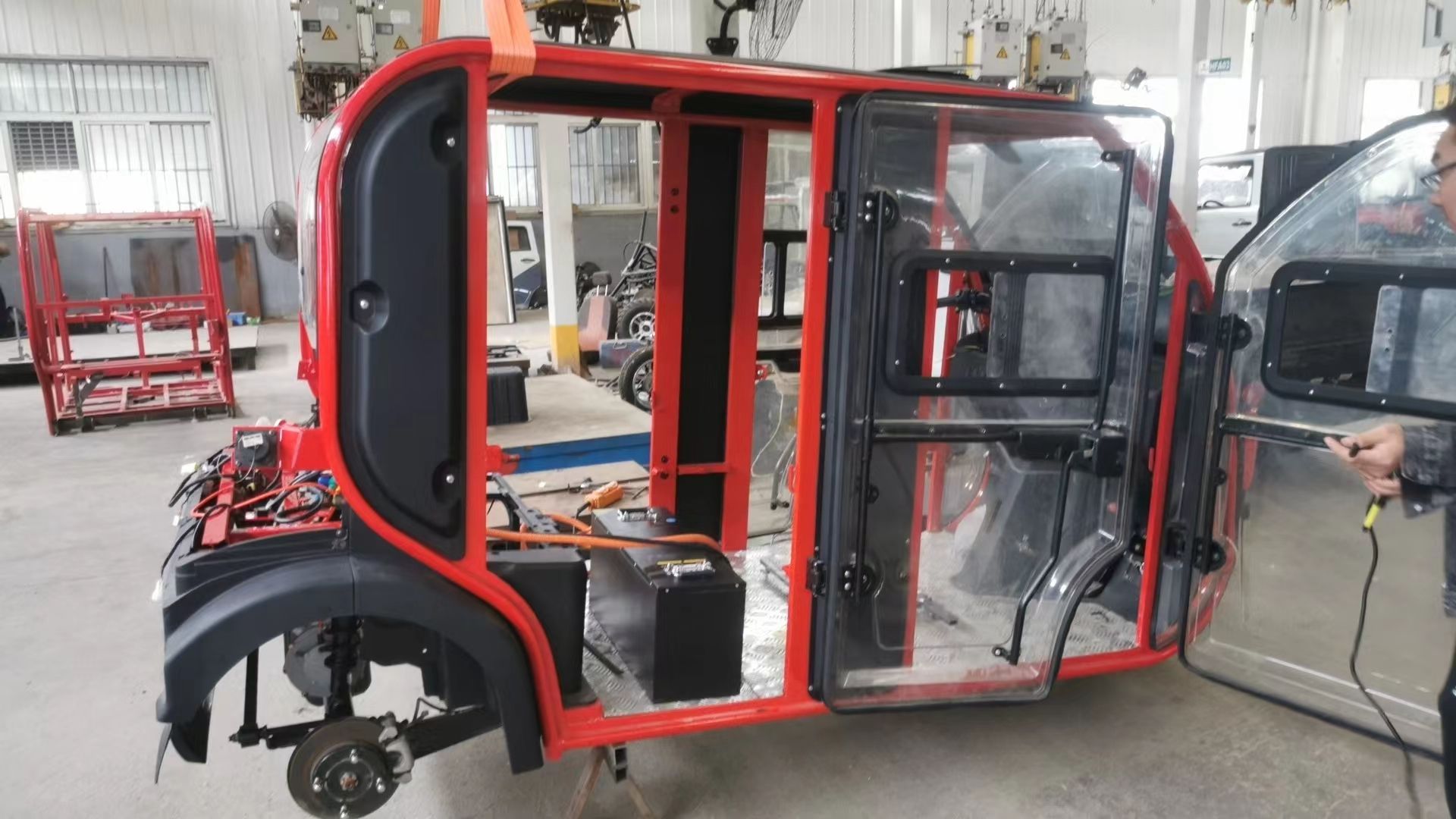

  • Full perimeter safety roll cage.
  • The rear wheels and axle are behind the rear passengers to radically smooth out the ride while increasing wheelbase for stability.
  • With the rear motor compartment and the rear wheel position behind the cabin, additional crush distance for passenger protection is added for rear impact improving safety.
  • No other trike has the ZEV accident protection features.

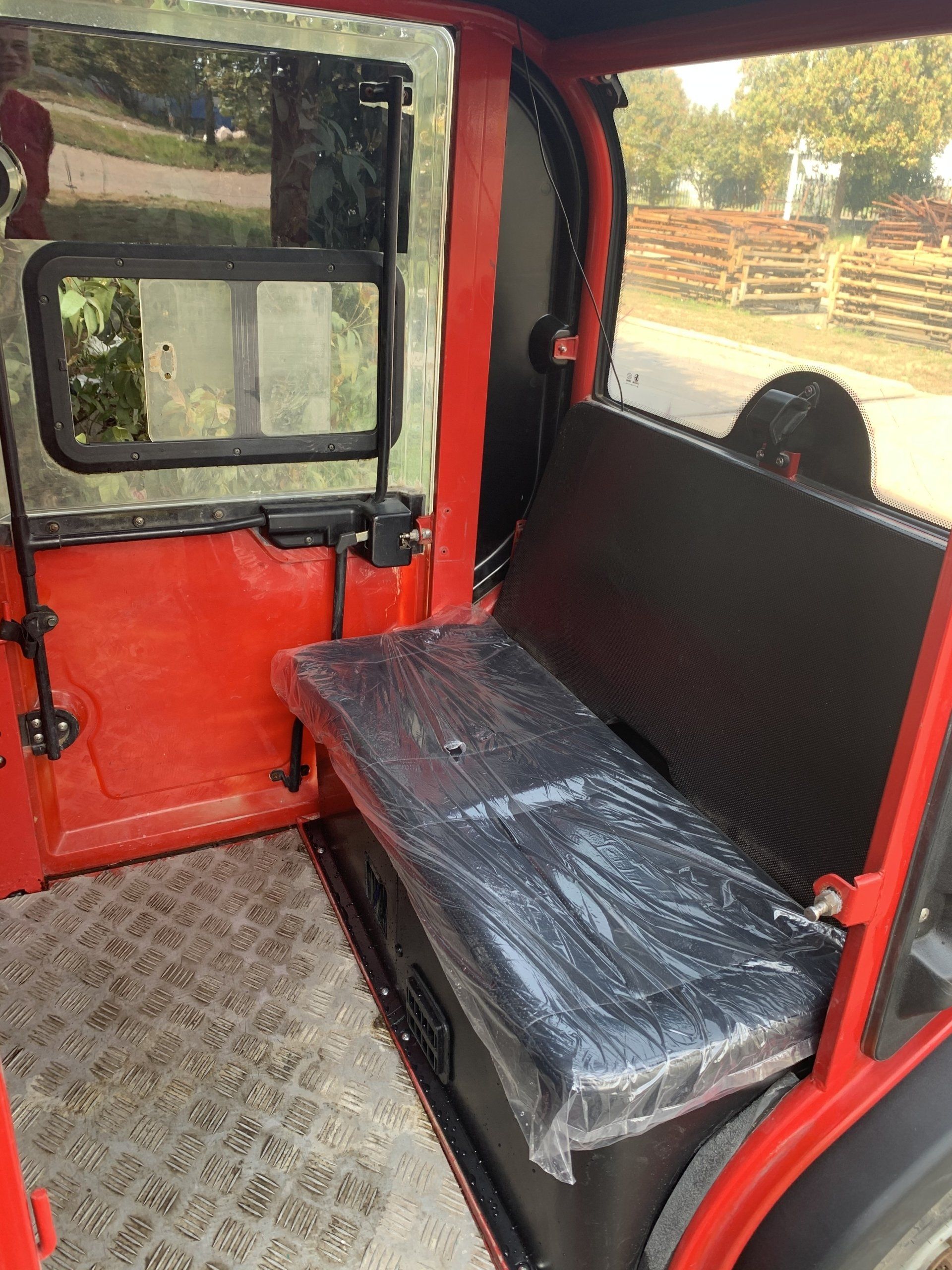

  • Moving the passenger gear to the rear motor compartment allows more interior space and increases safety. The rear doors extend behind the front of the rear seats to make entry easier than on any other trike on the market.
  • Doors are fitted with impact bars in the structure
  • Seat belts for all passengers are standard.
  • Optional Air Conditioning


SPECIFICATIONS:

L * W * H mm                              2760*1190*1650

Wheelbase mm                           670

Track mm                                    992

Turning Radius mm                     4100

Minimum Ground Clearance       110 mm

Curb Weight                                 320 Kg

Gross Weight                               700 Kg

Max Passengers - 2 rows seating, row behind driver facing            rearward, last row facing forward. Max 6 people including        driver

Motor Type -  AC asynchronous induction motor variable                 frequency motor

 Motor Rated Power                     4000~9000 w

System voltage nominal -             72

N.M.                                              21

Motor max rpm                              6000

Battery Options

         72 volt silicone lead battery. Six 100 ah battery

         OR 72 volt lithium battery of 100 ah

Charger type -  Portable Charger, not built into vehicle

Charging Voltage - 110 or 220



 Drive Type -  Rear wheel, motor on transaxle

 Body Structure - Steel tube

 Brake Type -  Hydraulic Drum Brake

 Steering Type -  Handlebar

Tires and wheels   Front: 130/60R13 Rear: 145/70R12

Max Speed, max speed full load    60 km/h, 55 km/h

Range depending on load and speed -  80 to 130 km

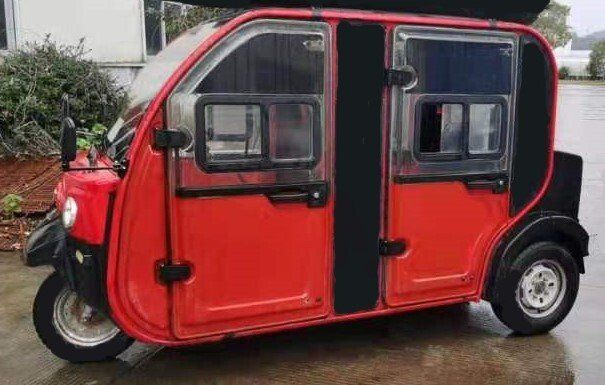

Lexan doors have sliding windows.

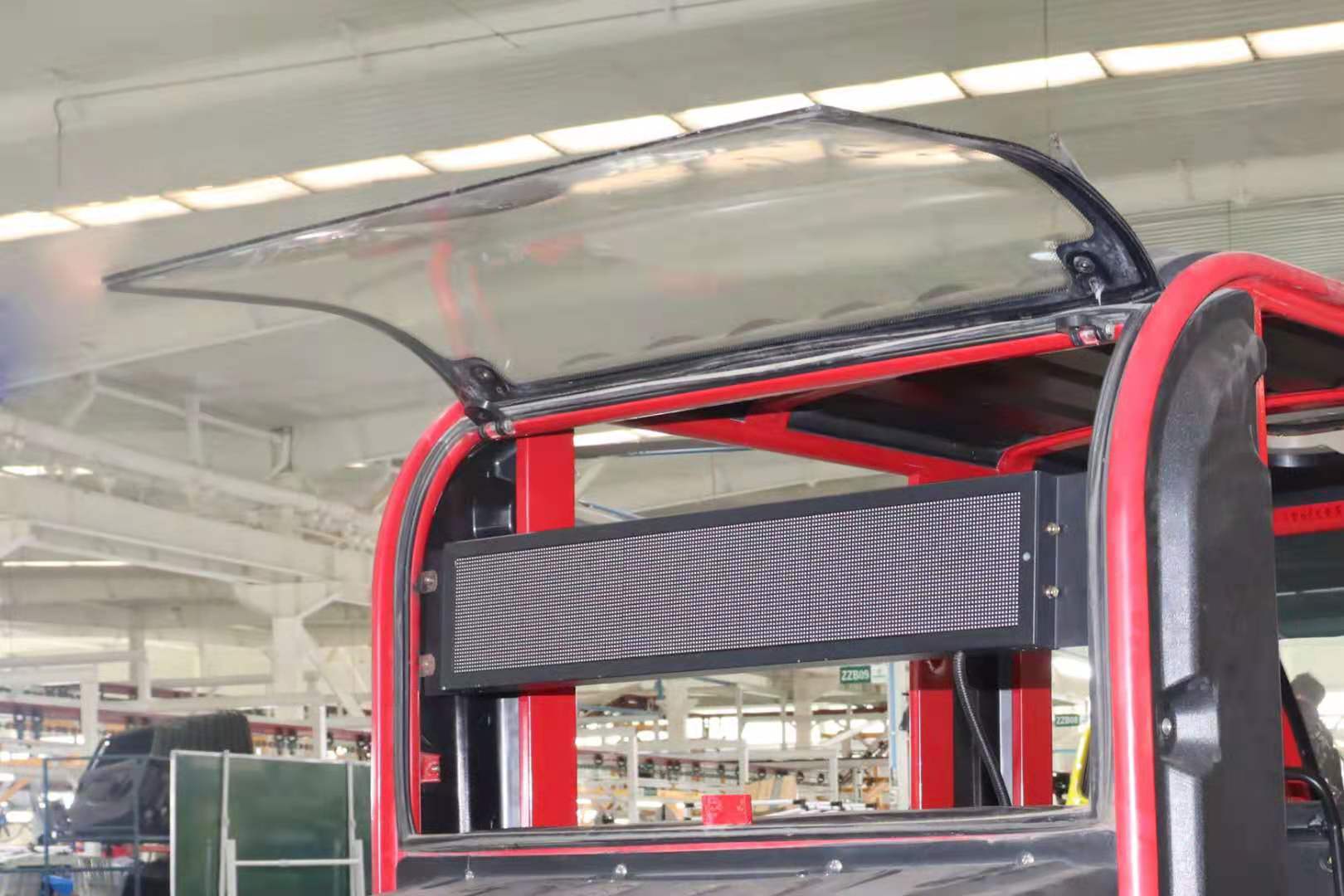

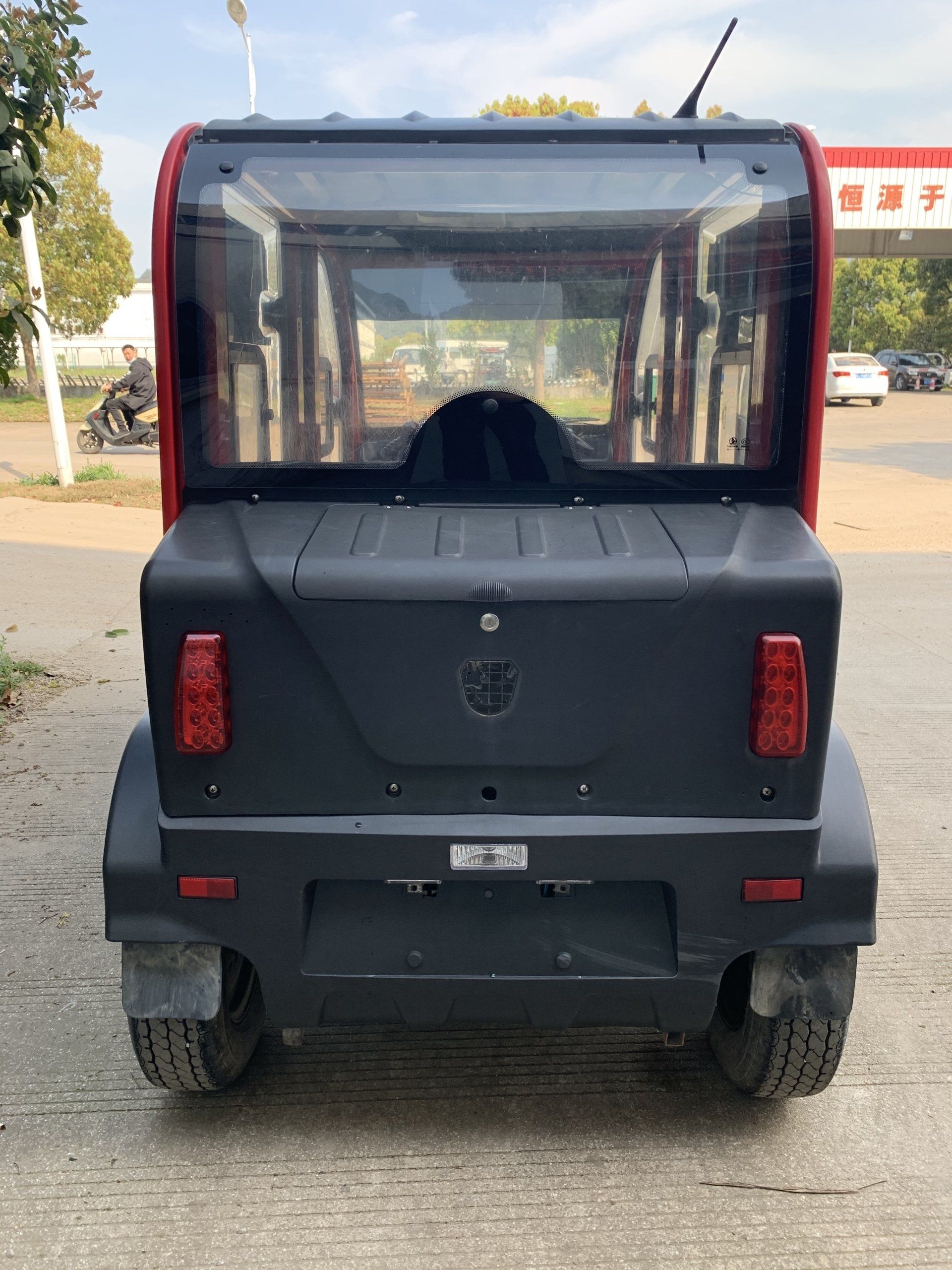

Rear window tilts out for ventilation, or to carry long objects.

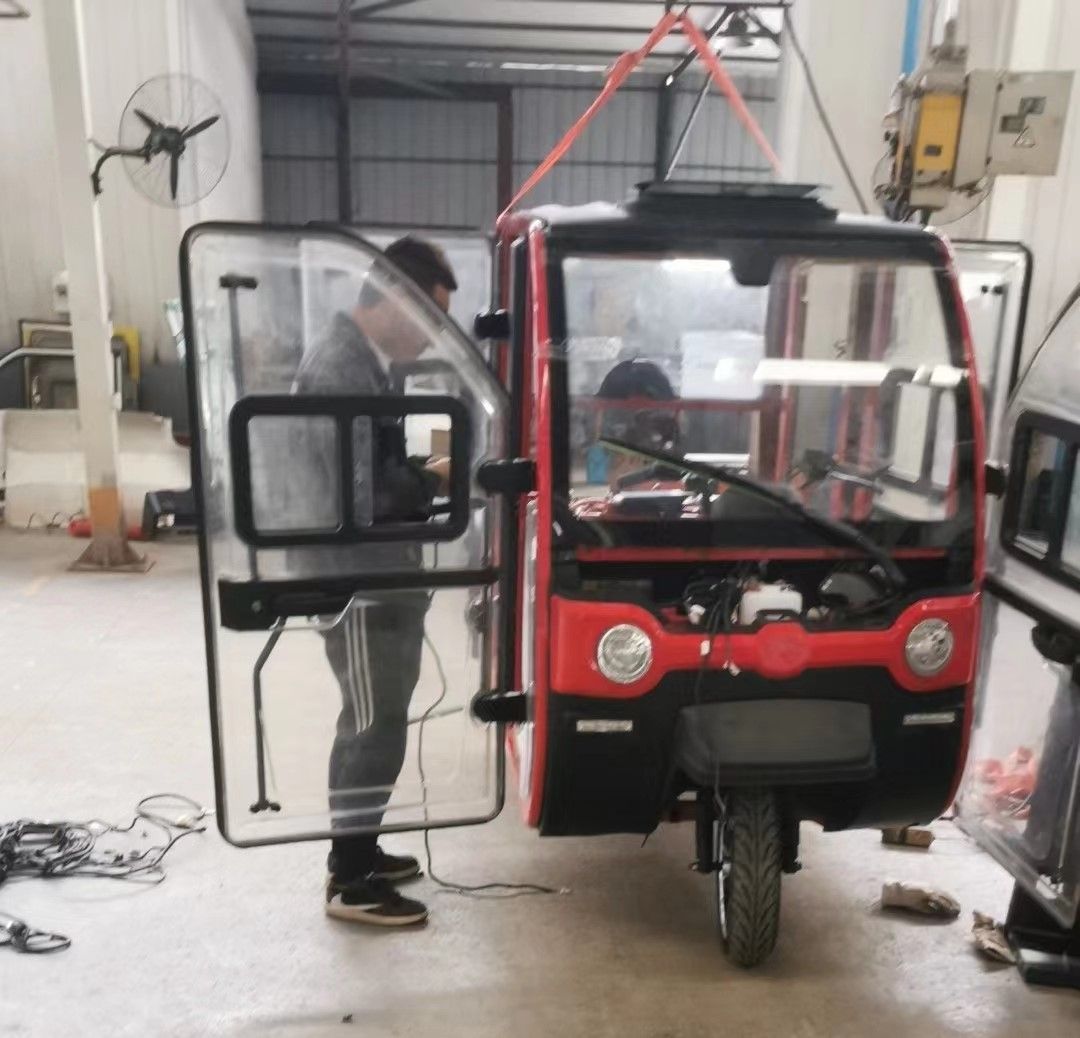

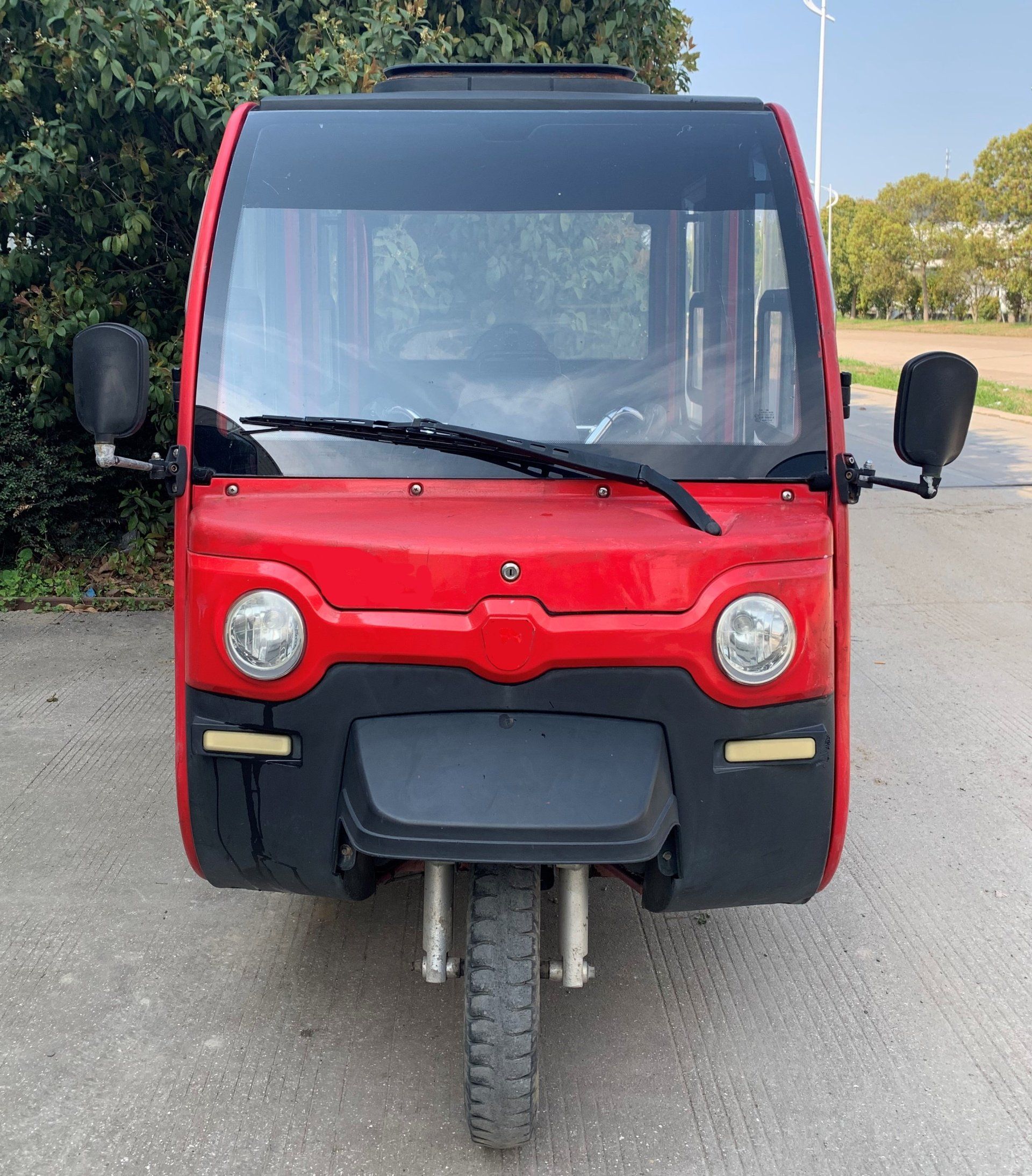

Dual front headlights of maximum brightness allowed by local laws.  Wide apart to increase on coming traffic recognition of the vehicle.

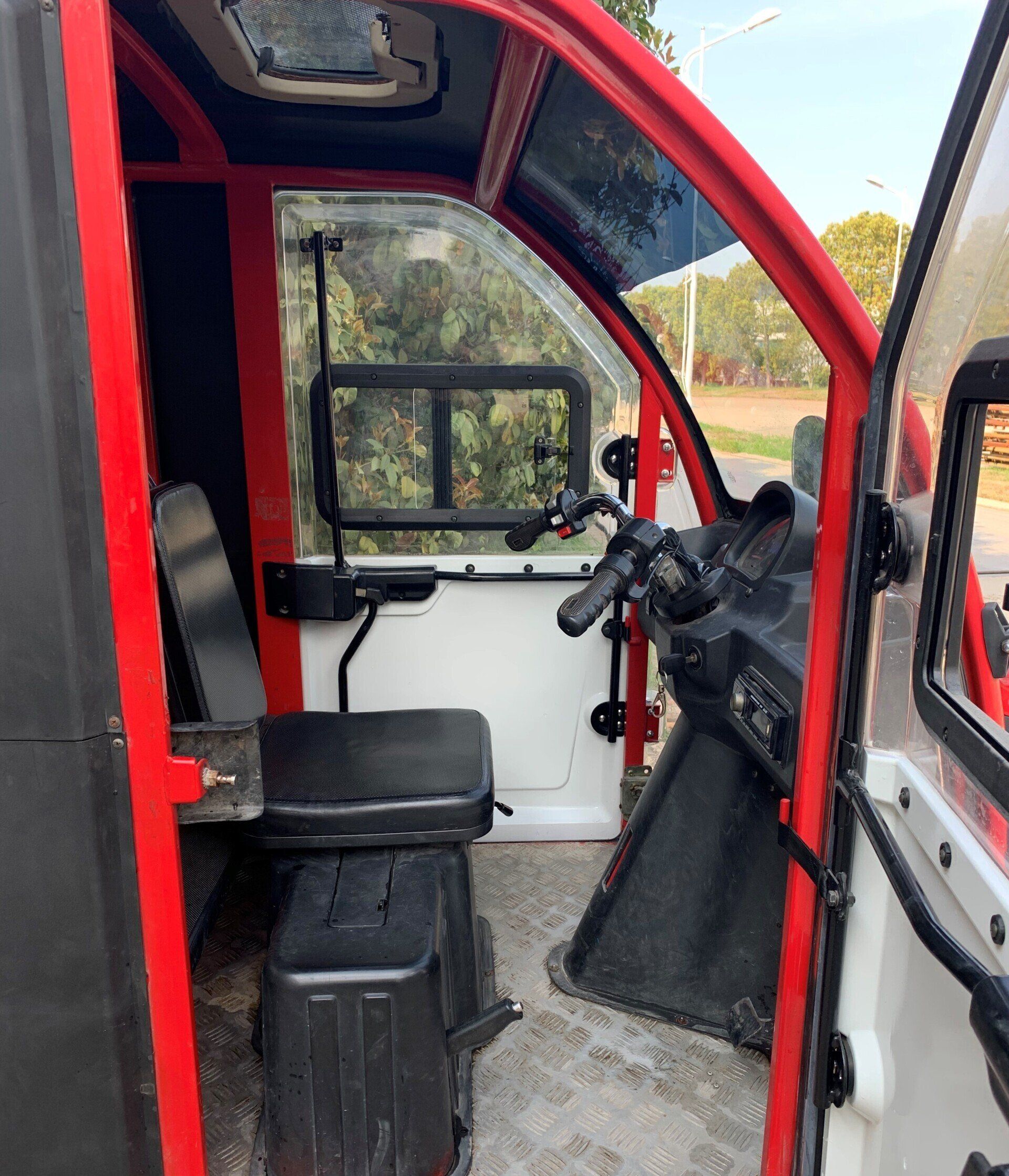

Large comfortable "office" for the driver.
